Matplotlib to‘r chiziqlari
Syujetga panjara chiziqlarini qo‘shing
Pyplot yordamida siz grid() funksiyasidan syujetga panjara chiziqlarini qo‘shishingiz mumkin.
Misol
Syujetga panjara chiziqlarini qo‘shing:
import numpy as np
import matplotlib.pyplot as plt
x = np.array([80, 85, 90, 95, 100, 105, 110, 115, 120, 125])
y = np.array([240, 250, 260, 270, 280, 290, 300, 310, 320, 330])
plt.title("Sports Watch Data")
plt.xlabel("Average Pulse")
plt.ylabel("Calorie Burnage")
plt.plot(x, y)
plt.grid()
plt.show()
Natija:
Qaysi panjara chiziqlarini ko‘rsatishni belgilang
Qaysi panjara chiziqlarini ko‘rsatishni belgilash uchun grid() funksiyasidagiaxisparametridan foydalanishingiz mumkin.
Yuridik qiymatlar: "x", "y" va "ikkalasi". Standart qiymat “ikkalasi”dir.
Misol
Faqat x o‘qi uchun panjara chiziqlarini ko‘rsatish:
import numpy as np
import matplotlib.pyplot as plt
x = np.array([80, 85, 90, 95, 100, 105, 110, 115, 120, 125])
y = np.array([240, 250, 260, 270, 280, 290, 300, 310, 320, 330])
plt.title("Sports Watch Data")
plt.xlabel("Average Pulse")
plt.ylabel("Calorie Burnage")
plt.plot(x, y)
plt.grid(axis = 'x')
plt.show()
Natija:
Misol

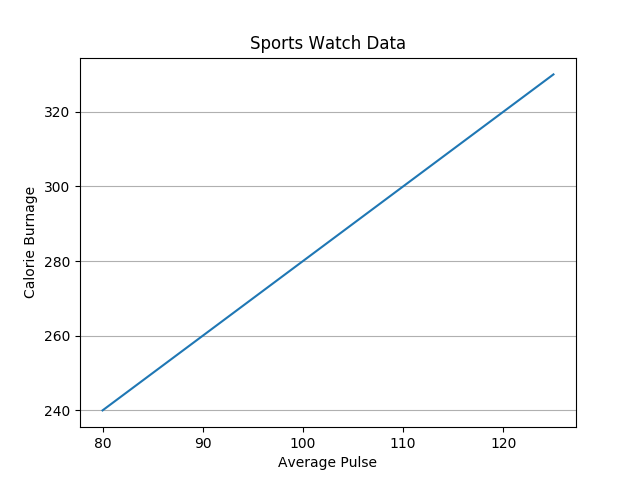

Y o‘qi uchun faqat panjara chiziqlarini ko‘rsatish:
import numpy as np
import matplotlib.pyplot as plt
x = np.array([80, 85, 90, 95, 100, 105, 110, 115, 120, 125])
y = np.array([240, 250, 260, 270, 280, 290, 300, 310, 320, 330])
plt.title("Sports Watch Data")
plt.xlabel("Average Pulse")
plt.ylabel("Calorie Burnage")
plt.plot(x, y)
plt.grid(axis = 'y')
plt.show()
Natija:
Grid uchun chiziq xususiyatlarini o‘rnating
To‘rning chiziq xossalarini ham o‘rnatishingiz mumkin, masalan: panjara (rang = 'rang', chiziq uslubi = 'chiziq uslubi', chiziq kengligi = raqam).
Misol
To‘rning chiziq xususiyatlarini o‘rnating:
import numpy as np
import matplotlib.pyplot as plt
x = np.array([80, 85, 90, 95, 100, 105, 110, 115, 120, 125])
y = np.array([240, 250, 260, 270, 280, 290, 300, 310, 320, 330])
plt.title("Sports Watch Data")
plt.xlabel("Average Pulse")
plt.ylabel("Calorie Burnage")
plt.plot(x, y)
plt.grid(color = 'green', linestyle = '--', linewidth = 0.5)
plt.show()
Natija:
